BeeRotor F3 Flight Controller w/ OSD and PDB

Flight Board

• Optimization for Cleanflight/Betaflight firmware - (flash as spracing target)
• ARM Cortex-M4 core STM32F303CC with 32bit/72MHz/256K Flash/40K SRAM and hardware floating point unit.
• MPU6050 and BMP180 / BMP280 Sensors.
• Build-in 8MB flash for black box log recorder.
• On board OSD with absolutely original MAX7456EUI+ and standard FTDI debug port.
• Receiver connector with PPM/SBUS/SumD/DSM2/DSMX and RSSI input.
• Up to 3 serial ports and 8 PWM outputs.
• Multifunction connectors with SWD/UART2~3/Soft-serial/Buzzer/LED trip/Voltage detection.
• Multifunction OSD connectors with video_IN/ video_OUT/ICSP/debug port (UART1).
• PDB connector with 5V input/Current and Voltage detection.
• Power input reverse polarity protection.

PDB

• Optimization for BeeRotorF3 Flight Controller
• Ferrite Beads and Capacity Filtering Circuit
• Dimension 35x35mm / Fixing hole spacing 30mm / Weight 5.5g
• 5.3V/3A and 12V/1.2A Step-Down Converter (If you use 12V out put, please confirm the battery input is 4S-6S)
• Input voltage and current sensors up to 28V/90A
• BeeRotorF3 Flight Controller connector with BEC/Current & Voltage detection

• Power input: 5.0~5.5V
• Dimension: 35x35x9mm
• Fixing hole spacing: 30mm
• Weight: 7.3g

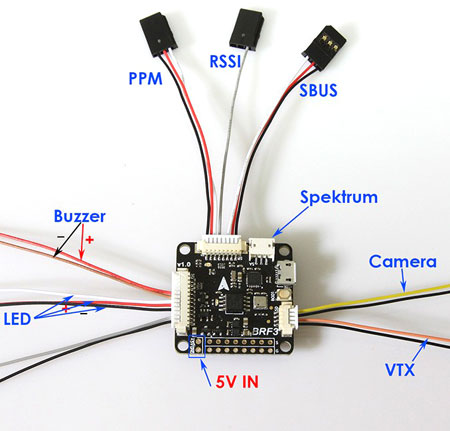

• PPM/RSSI/SBUS/SumD Receiver Cable
• Camera/video-TX cable
• OSD debug port to FTDI adapter cable
• Buzzer/LED strip/voltage detect cable
• Gama Correction: 0.45
• White Balance: Automatic
• Video Output: 1.0Vp-P75Ω
• Working temperature: -20 to 60°C
• Working Current: 135mA
• Cable Length: 210mm
• Weight: 9.5g

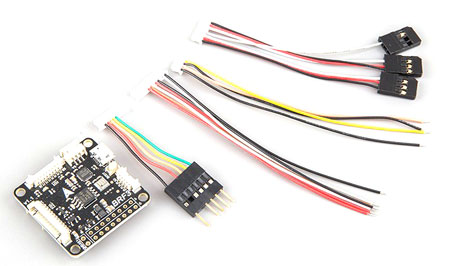

• Version 1.2 FC x 1
• Version V2.0 PDB x 1
• A set of Cable x 1
